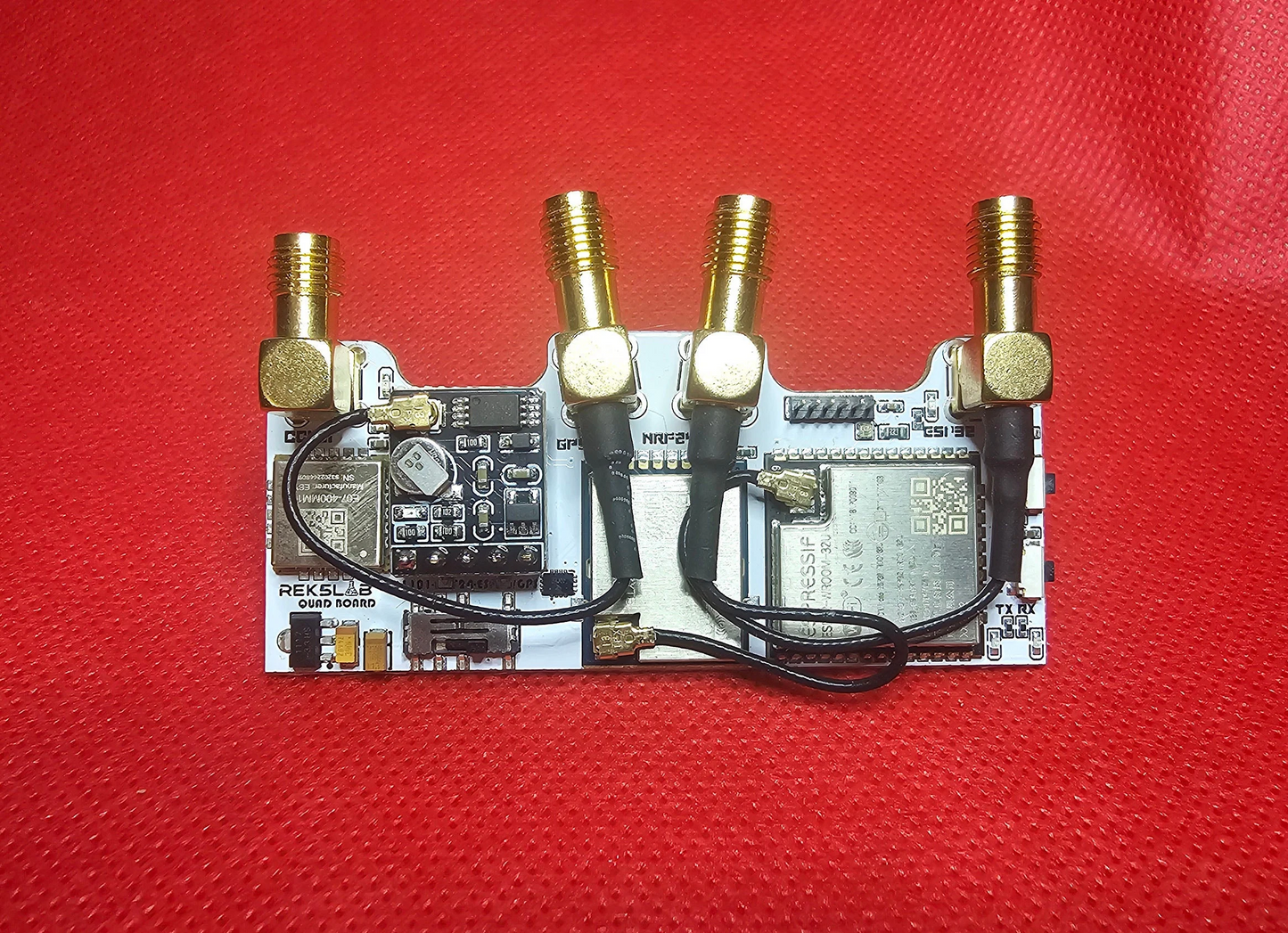

The Ultimate 4-in-1 Flipper Zero Multi-Tool
The QUAD Multi-Tool Board is the most powerful all-in-one expansion for Flipper Zero. Combining ESP32-WROOM, CC1101 Sub-GHz, NRF24 2.4GHz, GPS, and MicroSD storage on a single compact board - this is the only tool serious security researchers need.
Featured on The Shawn Ryan Show (Episode timestamp: 1:14:57), the QUAD board has been battle-tested by professionals and is trusted by the Flipper Zero community worldwide.
Perfect for: WiFi penetration testing, Sub-GHz analysis, 2.4GHz sniffing, GPS wardriving, data logging, security research, IoT testing, and educational security demonstrations.
🎯 Key Features
- ESP32-WROOM WiFi/Bluetooth: Full 2.4GHz WiFi deauther, packet monitor, AP scanner, Bluetooth analysis
- CC1101 Sub-GHz Radio: 300-928MHz coverage for car keys, garage doors, IoT devices, weather stations
- NRF24L01 Module: 2.4GHz wireless keyboard/mouse sniffing, BadUSB injection, protocol analysis
- GPS Module: Geolocation tracking, wardriving coordinates, location logging
- MicroSD Card Slot: Store captures, logs, and data from all modules
- Pre-Flashed Marauder: Ready to use out of the box - no setup required!
- Multi-Firmware Support: Compatible with Marauder, Bruce, and Ghost ESP firmware
- All-in-One Design: Replace 4+ separate modules with one compact board
🔥 What Makes QUAD Special?
1. ESP32 WiFi Capabilities (Marauder Firmware)
- WiFi Deauthentication: Test WiFi network resilience against deauth attacks
- Packet Monitor: Capture and analyze WiFi packets in real-time
- AP Scanner: Detect all WiFi networks in range with detailed info (RSSI, channel, encryption)
- Bluetooth Scanner: Discover nearby Bluetooth devices and analyze BLE traffic
- Wardriving: Map WiFi networks with GPS coordinates for coverage analysis
2. CC1101 Sub-GHz Radio
- Analyze car key fobs (315MHz, 433MHz, 868MHz, 915MHz)
- Test garage door openers and gate controls
- Monitor IoT sensors and smart home devices
- Capture weather station signals (433MHz/915MHz)
- Replay and retransmit Sub-GHz signals
3. NRF24L01 2.4GHz Module
- Sniff wireless keyboard/mouse traffic (unencrypted 2.4GHz devices)
- BadUSB injection attacks over wireless
- Analyze proprietary 2.4GHz protocols
- Test IoT device communication security
4. GPS + MicroSD Combo
- GPS coordinates for wardriving and location-based attacks
- Store all captures to MicroSD (hundreds of MB capacity)
- Log WiFi networks with GPS coordinates
- Data export for analysis in Wireshark, Excel, mapping tools
⚙️ Firmware Options (Choose Your Adventure)
The QUAD board comes pre-flashed with Marauder firmware, but you can easily switch between firmware options based on your needs:
| Firmware | Best For | Key Features |
|---|---|---|
|
Marauder (Pre-installed) |
WiFi pentesting, packet capture, wardriving | WiFi deauth, packet monitor, AP scanner, Bluetooth scanner |
| Bruce | All-in-one security toolkit | WiFi tools, RF replay, NFC emulation, IR control |
| Ghost ESP | Stealth operations, advanced WiFi attacks | Advanced deauth, rogue AP, man-in-the-middle capabilities |
Firmware can be changed anytime via USB - no soldering or hardware modification required!
🔧 Technical Specifications
| Microcontroller | ESP32-WROOM-32 (dual-core, 240MHz, 4MB flash) |
| WiFi | 2.4GHz 802.11 b/g/n (integrated in ESP32) |
| Bluetooth | Bluetooth 4.2 BR/EDR and BLE (integrated in ESP32) |
| Sub-GHz Module | TI CC1101 (300-348MHz, 387-464MHz, 779-928MHz) |
| 2.4GHz Module | NRF24L01+ (2.4GHz ISM band) |
| GPS | NEO-6M or compatible (supports NMEA protocol) |
| Storage | MicroSD card slot (supports up to 32GB FAT32) |
| Connection | Flipper Zero GPIO pins + USB-C for firmware updates |
| Firmware (Pre-installed) | ESP32 Marauder (latest version) |
| Power | Powered by Flipper Zero via GPIO (5V/3.3V regulated) |
💡 Real-World Use Cases
Security Professionals
- WiFi network penetration testing and vulnerability assessment
- Wireless peripheral security audits (keyboards, mice, IoT devices)
- RF security testing for physical access control systems
- Wardriving and network mapping for client engagements
Security Researchers
- IoT protocol analysis and vulnerability research
- Wireless communication security studies
- RF signal capture and reverse engineering
- Multi-frequency spectrum analysis
Educational & Training
- Demonstrate WiFi security vulnerabilities in controlled environments
- Teach wireless protocol analysis and security concepts
- Hands-on training for cybersecurity students
- Security awareness demonstrations for organizations
Hobbyists & Makers
- Learn about wireless protocols and RF communication
- Build custom security tools and automation
- Experiment with IoT device communication
- Analyze and understand your own wireless devices
⚙️ How to Use
- Unbox & Inspect: QUAD board arrives pre-flashed with Marauder firmware
- Connect to Flipper: Attach QUAD to your Flipper Zero's GPIO pins
- Insert MicroSD: Add MicroSD card for data storage (optional but recommended)
- Launch Marauder App: Open ESP32 Marauder app on your Flipper Zero
- Start Testing: Scan WiFi, deauth networks, capture packets, log GPS coordinates!
- Switch Firmware (Optional): Flash Bruce or Ghost ESP via USB-C if desired
Includes quick-start guide with firmware switching instructions.
📦 What's Included
- QUAD Multi-Tool Board (fully assembled and tested)
- Pre-flashed Marauder firmware (latest stable version)
- GPIO connection cable for Flipper Zero
- USB-C cable for firmware updates
- Quick-start guide (digital download)
MicroSD card NOT included - use any standard MicroSD up to 32GB.
❓ Frequently Asked Questions
Q: Do I need any firmware on my Flipper Zero?
A: The QUAD board works with both stock and custom firmware! For best experience, we recommend Momentum firmware. With stock Flipper firmware, you can use the board via the Marauder companion app or serial bridge with a PC serial monitor. Custom firmware (Momentum, Unleashed, Xtreme, RogueMaster) provides the easiest experience with full ESP32 integration.
Q: Can I switch between Marauder, Bruce, and Ghost ESP?
A: Absolutely! Simply connect the QUAD board to your computer via USB-C and flash your preferred firmware using the ESP flasher tool. Instructions included.
Q: Will this drain my Flipper's battery faster?
A: Yes, the QUAD board draws significant power (especially WiFi). Expect 2-4 hours of active use on Flipper's battery. We recommend an external battery pack for extended operations.
Q: Is GPS required for WiFi attacks?
A: No, GPS is optional. It's mainly used for wardriving (mapping WiFi networks with coordinates). All other features work without GPS.
Q: What MicroSD card should I use?
A: Any MicroSD card up to 32GB formatted as FAT32 works. We recommend Class 10 or higher for faster write speeds when logging packets.
Q: Can I use this for Bluetooth attacks?
A: Marauder includes Bluetooth scanning capabilities. For advanced Bluetooth attacks, consider switching to Bruce or Ghost ESP firmware which have more BLE features.
Q: How is this better than buying modules separately?
A: Cost, convenience, and integration. Buying ESP32 WiFi board ($40) + CC1101 ($40) + NRF24 ($40) + GPS ($30) separately costs $150+ and requires managing multiple boards. QUAD combines everything for $99 with better power management and integration.
Q: Does this work with Flipper Zero official firmware?
A: No, official firmware does not support external ESP32 boards. You must use community firmware (Unleashed, Xtreme, RogueMaster, etc.). These are free and easy to install.
⚠️ LEGAL DISCLAIMER - EDUCATIONAL USE ONLY
This device is intended for EDUCATIONAL and AUTHORIZED SECURITY TESTING purposes only.
Legal Requirements:
- ✅ Legal: Testing your own networks and devices
- ✅ Legal: Authorized penetration testing with written permission
- ✅ Legal: Security research in controlled lab environments
- ✅ Legal: Educational demonstrations with proper authorization
- ❌ ILLEGAL: Accessing networks without authorization
- ❌ ILLEGAL: Intercepting communications you don't own
- ❌ ILLEGAL: Disrupting networks or services (even as a "prank")
- ❌ ILLEGAL: Any form of unauthorized hacking or intrusion
YOU are responsible for complying with all local, state, and federal laws. Unauthorized access to computer networks is illegal under the Computer Fraud and Abuse Act (CFAA) in the USA and similar laws worldwide. Violators face criminal prosecution, fines, and imprisonment.
By purchasing this device, you acknowledge:
- You will use this device only for legal, authorized purposes
- You understand unauthorized network access is a serious crime
- You accept full responsibility for your actions with this device
- rek5lab is NOT liable for misuse or illegal activities
This tool is designed for security professionals, researchers, and educators. Use responsibly and ethically. When in doubt, get written permission before testing any network or device you don't own.
⚠️ Important Notes
- Flipper Zero NOT Included: This is the QUAD board only
- Firmware Compatibility: Works with stock Flipper firmware (via Marauder companion app), Momentum, Unleashed, Xtreme, RogueMaster, and other community firmware with ESP32 support
- MicroSD NOT Included: Use any MicroSD card up to 32GB (FAT32)
- GPS Antenna: Built-in ceramic antenna (no external antenna needed for most uses)
- Power Consumption: Max 300mA (external battery recommended for extended WiFi use)
- Educational Use: Intended for learning, research, and authorized security testing only
